Part 1 | Part 2 | Part 3
In part one of this series on shrinking database files, we tested and proved the performance implications when a database file grows during a transaction. In the case of transaction logs, there are also potential performance issues.
Transaction logs tend to grow more often than database files, and as a result, database administrators shrink them more often. In this tip, I will test the impact when a transaction log file grows during a transaction. In this article's example, I use the same environment and configuration as that described in my previous tip; the only difference is that I have installed SP3 on the SQL Server.
The database
My test database, ShrinkDB, is configured not to allow the database file to grow during the transaction. The transaction log file size, however, is only 2 MB, and the goal of these tests is to let it grow with each transaction to measure its implications:
[IMAGE]
The recovery model of the ShrinkDB database is set to FULL.
select size from sysfiles where fileid = 2
This above query, in which fileid equals the transaction log file, returns 256. This indicates that the size of the transaction log file, in 8 KB pages, is 2 MB.
As in my previous article, the ExpandDB table is used yet again:
create table ExpandDB (a varchar(8000))
The tests
My goal was to learn how the INSERT, UPDATE and DELETE commands affect th...
To continue reading for free, register below or login
To read more you must become a member of SearchSQLServer.com
e growth of the transaction log, along with how the growth of the transaction log affects the INSERT, UPDATE and DELETE transactions.
I divided the tests into two phases:
[IMAGE] In the first phase, I monitored the general behavior of the transaction log's growth relative to the running modifications.
[IMAGE] In the second phase, I used only those commands that in the first phase caused the transaction log to grow. In this phase, I've tested autogrowth scenarios similar to those used in part one.<
Since updates, inserts and deletes can behave differently, each phase includes three sections, one per operation: UPDATES, INSERTS and DELETE.
Phase 1: Transaction log growth behavior
UPDATE commands and transaction log growth
In this test, my code inserts only one row to the table, and it will update this row until the transaction log file grows to 8 MB (1,024 pages):
-- Insert one row into the table
insert into ExpandDB select replicate ( 'a',8000)
--================================================================
-- Update the table until T-Log reaches 8MB
while (select size from sysfiles where fileid = 2) <= 1024
update ExpandDB set a = replicate ( 'a',8000)
go
The results were surprising!
My loop ran indefinitely, the transaction log file never grew and the percentage of free space in the transaction log, which was captured using , was consistently greater than 30%. During the transaction, the transaction log would fill up until it reached 70% and then decrease to about 50%. To make sure I got the right data from dbcc sqlperf, I also ran the report to look for autogrowth in database files:

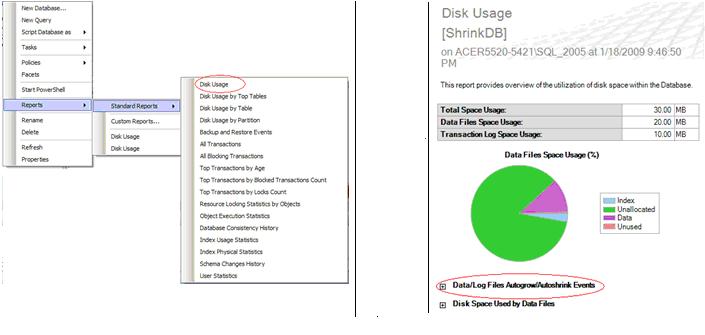

[IMAGE]
It reported no autogrowth for any database at that time!
I then decided to check a large transaction with short updates of one row at a time, so I added a begin transaction:
-- Big transaction
begin tran
while (select size from sysfiles where fileid = 2) <= 1024
update ExpandDB set a = replicate ('a',8000)
go
commit tran
This time, the results were equally confusing. My loop ran indefinitely, the transaction log file never grew beyond the initial 2 MB and the percentage of free space in the transaction log was constantly greater than 60%. I canceled the loop and committed the transaction. After the commit, the used space in the transaction log file even decreased a bit in size.
In another test of the UPDATE command, I inserted 10,000 rows into the table and ran the following code:
-- Truncate the T-Log
backup transaction ShrinkDB with truncate_only
go
-- Check the size of the T-Log file (RESULT = 2MB)
select size from sysfiles where fileid = 2
go
-- Check % free space in T-Log
dbcc sqlperf(logspace)
go
-- Update 10000 rows at a time
update ExpandDB set a = a + 'a'
go
update ExpandDB set a = a + 'a'
go
update ExpandDB set a = a + 'a'
go
update ExpandDB set a = a + 'a'
go
update ExpandDB set a = a + 'a'
go
update ExpandDB set a = a + 'a'
go
update ExpandDB set a = a + 'a'
go
-- Check % free space in T-Log
dbcc sqlperf(logspace)
go
The results were similar. The transaction log file did grow by 1 MB until it reached 10 MB, but after reaching this size, it stayed put. No matter how many times I executed the same update, the space filled up and reduced again:
[IMAGE]
I searched for answers regarding this issue and found none in SQL Server 2005 documentation. I also performed this test on another machine with SQL Server 2005 SP3, and I encountered the same behavior.
I analyzed the contents of the transaction log with the ApexSQL Log tool and the results confirmed that every time I looked at the content of the transaction log, I got a different number of updates. This is the same behavior I encountered with the transaction log sizes; it grew and shrank, but the file size did not change.
In another attempt to understand the behavior of the transaction log, I executed a transaction where the UPDATE command modified the values in the row:
-- Truncate the table
truncate table ExpandDB
go
-- Truncate the T-Log
backup transaction ShrinkDB with truncate_only
go
-- Shrink T-Log back to 2MB:
DBCC SHRINKFILE (N'ShribkDB_Log' , 0, TRUNCATEONLY)
Go
-- Insert one row into the table
insert into ExpandDB select replicate ('a',3)
--================================================================
-- Update the table until T-Log reaches 8MB
-- Big transaction
begin tran
while (select size from sysfiles where fileid = 2) <= 1024
update ExpandDB set a = case len(a)
when 7999 then a else a + 'b' end
commit tran
go
-- Check status of T-log
dbcc sqlperf(logspace)
go
In this case, the transaction log grew to 4 MB, and the amount of space used remained around 94% for a long time. I did not, however, get an error indicating string truncation or overflow. As monitored by the ApexSQL Log tool, the transaction log contents stayed constant at around 13,380 rows when the transaction log stopped growing. Furthermore, the monitoring statement in SQL Profiler also showed that no command was being executed after the transaction log stopped growing, and no errors appeared. After I canceled the transaction, no special message appeared in the error log to indicate that an autogrowth operation was canceled or aborted, but the transaction appeared to be stuck.
In similar instances, I sometimes see the following message in the error log:
But no matter how many times I executed the above code, this did not happen during the test.
After canceling the transaction, the space used in the transaction log was reduced to around 45%.
I decided to run the above UPDATE command without a transaction on a larger amount of rows:
-- Truncate the T-Log
backup transaction ShrinkDB with truncate_only
go
-- Check the size of the T-Log file (RESULT = 2MB)
select size from sysfiles where fileid = 2
go
-- Check % free space in T-Log
dbcc sqlperf(logspace)
go
-- Update 10000 rows at a time
update ExpandDB set a = case len(a)
when 7999 then a else a + 'b' end
go
update ExpandDB set a = case len(a)
when 7999 then a else a + 'b' end
go
update ExpandDB set a = case len(a)
when 7999 then a else a + 'b' end
go
update ExpandDB seta = caselen(a)
when 7999 then a else a + 'b' end
go
update ExpandDB set a = case len(a)
when 7999 then a else a + 'b' end
go
update ExpandDB set a = case len(a)
when 7999 then a else a + 'b' end
go
update ExpandDB set a = case len(a)
when 7999 then a else a + 'b' end
go
-- Check % free space in T-Log
dbcc sqlperf(logspace)
go
The results showed that if I executed the updates one by one, waiting about one or two seconds in between, the transaction log did not grow and space filled up and emptied as before. When I executed two updates in a row, however, it seemed that the space did not fill up or empty before the second transaction ran. In this scenario, the transaction log grew.
INSERT commands and transaction log growth
In this test, my goal was to make the transaction log grow to 8 MB and then compare the data file growth rate with the transaction log growth rate. The data file was set to 200 GB with no autogrowth, and the transaction log was set at 2 MB with 1 MB of autogrowth. I executed the following code:
-- Truncate the table
truncate table ExpandDB
go
-- Truncate the T-Log
backup transaction ShrinkDB with truncate_only
go
-- Shrink T-Log back to 2MB:
DBCC SHRINKFILE (N'ShrinkDB_Log' , 0, TRUNCATEONLY)
Go
-- Check the size of the T-Log file
select size from sysfiles where fileid = 2
go
-- Insert narrow rows into the table
while (select size from sysfiles where fileid = 2) <= 1024
insert into ExpandDB select replicate ('a',3)
go
At the same time, I also executed the following code:
select getdate()
dbcc sqlperf (logspace)
go
waitfor delay '00:00:02'
go
select getdate()
dbcc sqlperf (logspace)
go
select getdate()
go
dbcc sqlperf (logspace)
go
waitfor delay '00:00:02'
Go
My loop ran for a long time, the data file filled up slowly and emptied, but the transaction log file stayed at 2 MB. The above code returned these results:
[IMAGE]
Apparently, the amount of free space decreased. Right before canceling the inserts 45 minutes into the test, I had around 1.8 million rows in the table and the transaction log was still at 2 MB. After the cancellation, the transaction log was still at 2 MB and only 39.88% of the space had been used. The data file was at 31% used.
I then attempted a test using large transactions with one insert at a time:
-- Truncate the table
truncate table ExpandDB
go
-- Truncate the T-Log
backup transaction ShrinkDB with truncate_only
go
-- Shrink T-Log back to 2MB:
DBCC SHRINKFILE (N'ShrinkDB_Log' , 0, TRUNCATEONLY)
Go
-- Insert 100000 rows
-- Big transaction
begin tran
while (select size from sysfiles where fileid = 2) <=1024
insert into ExpandDB select replicate ('a',3)
go
commit tran
go
dbcc sqlperf(logspace)
go
select count(*) from ExpandDB
go
The transaction log grew up to 9 MB, and at the end, there were 14,572 rows in the table:
[IMAGE]
To test large updates, I inserted 10,000 rows in the table and ran the following code:
-- Truncate the T-Log
backup transaction ShrinkDB with truncate_only
go
-- Check the size of the T-Log file (RESULT = 2MB)
select size from sysfiles where fileid = 2
go
-- Check % free space in T-Log
dbcc sqlperf(logspace)
go
-- Insert 10000 rows at a time
Insert into ExpandDB select * from ExpandDB
Go
-- Check % free space in T-Log
dbcc sqlperf(logspace)
go
-- Insert 10000 rows at a time
Insert into ExpandDB select * from ExpandDB
Go
-- Check % free space in T-Log
dbcc sqlperf(logspace)
go
-- Insert 10000 rows at a time
Insert into ExpandDB select * from ExpandDB
Go
-- Check % free space in T-Log
dbcc sqlperf(logspace)
go
-- Insert 10000 rows at a time
Insert into ExpandDB select * from ExpandDB
Go
-- Check % free space in T-Log
dbcc sqlperf(logspace)
go
This time, the transaction log multiplied by 2 after each insert.
DELETE commands and transaction log growth
My goal was the same as with the INSERT and UPDATE commands. I inserted 10,000 rows into the table and ran the following code to delete one row at a time:
-- Truncate the table
truncate table ExpandDB
go
-- Truncate the T-Log
backup transaction ShrinkDB with truncate_only
go
-- Shrink T-Log back to 2MB:
DBCC SHRINKFILE (N'ShrinkDB_Log' , 0, TRUNCATEONLY)
Go
-- Insert 100000 rows
declare @i int
set @i = 1
while @i <= 10000
begin
insert into ExpandDB select replicate ('a',1000)
set @i = @i + 1
end
go
-- Delete rows one by one:
set rowcount 1
while (select size from sysfiles where fileid = 2) <= 1024
delete from ExpandDB
set rowcount 0
go
The same behavior emerged: The transaction log did not grow, and the space filled up and emptied in a cycle.
I then attempted a large delete:
-- Truncate the table
truncate table ExpandDB
go
-- Truncate the T-Log
backup transaction ShrinkDB with truncate_only
go
-- Shrink T-Log back to 2MB:
DBCC SHRINKFILE (N'ShrinkDB_Log' , 0, TRUNCATEONLY)
Go
-- Insert 100000 rows
declare @i int
set @i = 1
while @i <= 10000
begin
insert into ExpandDB select replicate ('a',1000)
set @i = @i + 1
end
go
-- Delete 10,000 at a time and monitor the T-Log size and free space:
begin tran
set rowcount 10000
while exists (select 1 from ExpandDB)
begin
delete from ExpandDB
dbcc sqlperf(logspace)
end
set rowcount 0
commit tran
go
The results indicated that the transaction log grew:
[IMAGE]
Finally, I ran a large transaction with small operations:
-- Truncate the table
truncate table ExpandDB
go
-- Truncate the T-Log
backup transaction ShrinkDB with truncate_only
go
-- Shrink T-Log back to 2MB:
DBCC SHRINKFILE (N'ShrinkDB_Log' , 0, TRUNCATEONLY)
Go
-- Insert 100000 rows
declare @i int
set @i = 1
while @i <= 10000
begin
insert into ExpandDB select replicate ('a',1000)
set @i = @i + 1
end
go
-- Delete 10,000 at a time and monitor the T-Log size and free space:
begin tran
set rowcount 1
while exists (select 1 from ExpandDB)
begin
delete from ExpandDB
end
It appeared that the transaction log grew, albeit slowly.
What it all means
The results indicate that the transaction log does not grow much when short and separate INSERT, UPDATE and DELETE commands are involved. But as I viewed the contents of the transaction log file, this test generated strange behavior: The file filled up and emptied when reaching about 70% but did not grow.
When larger operations are executed, including larger amounts of data in a transaction, the transaction log grows, but not as linearly as expected. There appears to be some compression of data done subsequent to a transaction.
Phase 2: What are the implications of tempdb growth?
[IMAGE]
[IMAGE]CAN YOU SHRINK YOUR DATABASE TO DEATH?
[IMAGE]
[IMAGE] Part 1: Examining data file growth
[IMAGE] Part 2: Transaction log autogrowth behavior
[IMAGE] Part 3: Performance implications of T-log autogrowth
