Another way to access data mining query results and to distribute those
results is to use SQL Server Reporting Services. Reporting Services provides a
mechanism for creating custom reports containing text and graphics that can
be distributed via HTML, email or in print or Microsoft Office documents.
Web-based reports can be made interactive by adding report parameters that
modify the report contents. Reporting Services has options to run reports periodically
and cache the results to expedite report retrieval, and you can even
specify queries to control report distribution. The product documentation has
extensive details on Reporting Services functionality, and there are several
books on how to create and manage reports, so I will only discuss how data
mining features are integrated.
To use Reporting Services with data mining, you simply create a Reporting
Services project with the BI Dev Studio and specify an Analysis Services database
as your data source. Depending on the contents of the database, you will
be presented with either an OLAP or Data Mining query builder as in Figure
3.23. You can always switch between the two modes by clicking the Switch
Command Type button indicated in the figure. The Set Parameters button
allows you to create parameters that can be set by Reporting Services. The
Switch Query Mode button allows you to switch between Design mode and
SQLmode so that you can create queries not supported by the Query Builder.
Tip: You can create reports from user defined functions using the CALL syntax.
To do this, you must be in the DMX Query Builder and switch to the SQL mode
where you can directly type in your CALL statement.
When creating a report from a data mining query, you have all of the functionality
of Reporting Services to work with. For example, DMX does not support
grouping operations, but Reporting Services does. You can use the
grouping functionality of Reporting Services against the query described in
Figure 3.23 to create a report that is the equivalent of the classification matrix
described previously. Figure 3.24 shows the result of such a report.

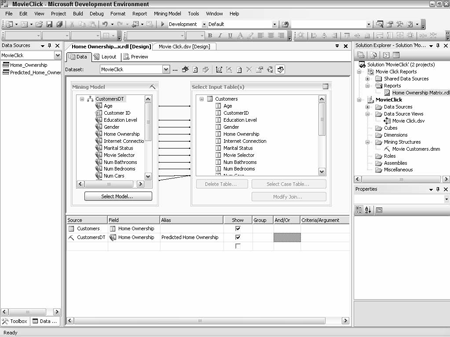

Figure 3.23 Data Mining Report Designer indicating important controls

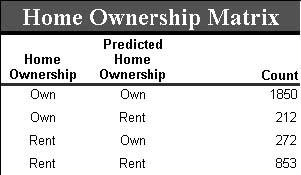

Figure 3.24 Classification matrix report
